DN125 Putzmeister Concrete Pump Parts C Valve Casting Steel
Contacteer me voor vrije steekproeven en coupons.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Productnaam | Putzmeisterc klep | Model nr. | DN125 |
|---|---|---|---|
| Technologie | gietend staal | Materiaal | 20# staal |
| Pijpoppervlakte | Zandstralen | Toepassing | Concrete pomppijp |
| Markeren | DN125 Putzmeister Concrete Pump Parts,Putzmeister Concrete Pump Parts C Valve,Casting Steel concrete pump accessories |
||
Productomschrijving

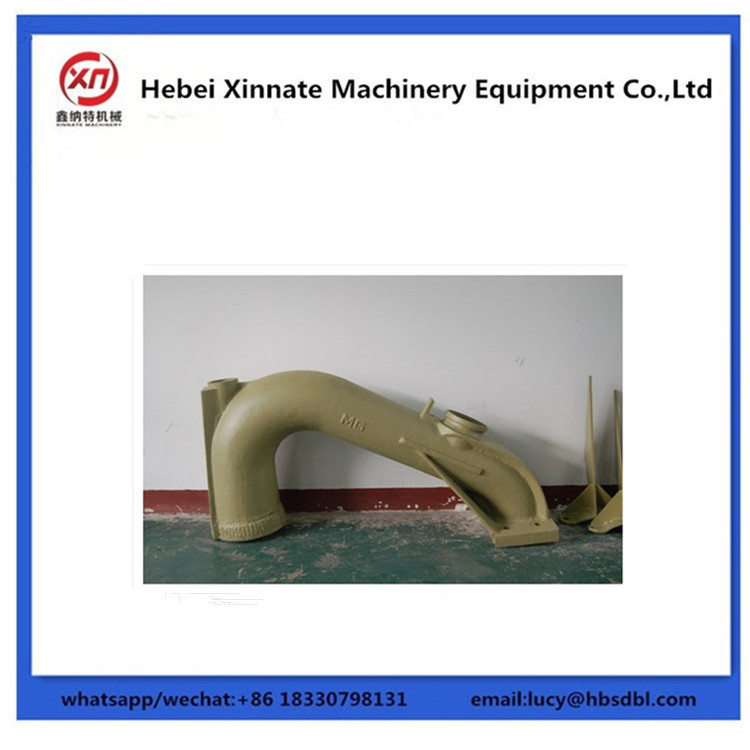

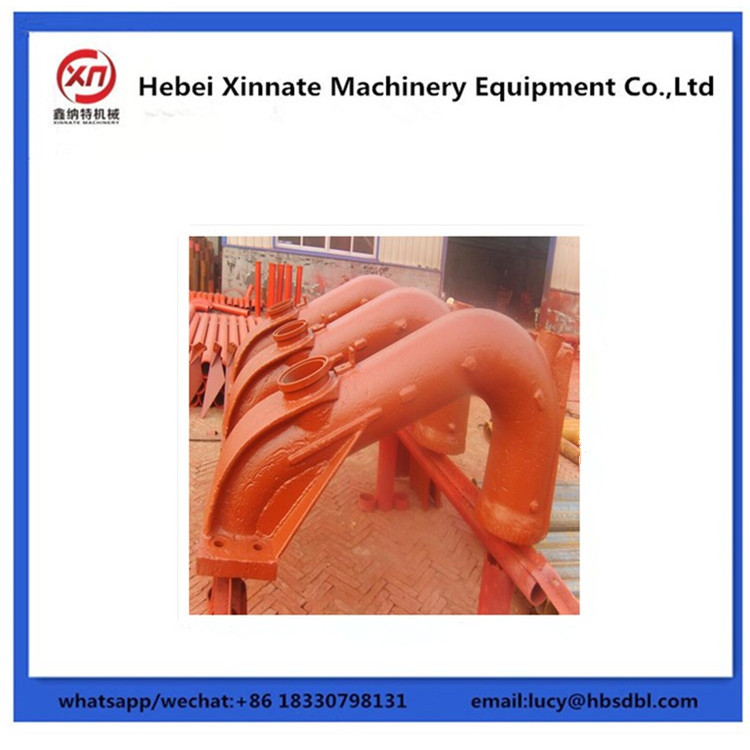

Concrete Pump Parts C Valve/Putzmeister C Valve/Wear Sparts C Valve
1.Product description
There is one of putzmeister concrete pump C valve, which is used on the concrete truck pump. Size is DN125, material is 20#,45Mn, and so on material.The utility model relates to a vertical tubular distributing valve. Its working principle is the same as the S - shaped pipe valve, but the discharge end is vertically arranged and the valve tube is C shaped. As the pipe valve swings in the horizontal surface, the interface with the Delivery Cylinder should be made into a circular arc surface. The C shaped valve is arranged in the hopper, and one end is connected with the concrete pump outlet 1, and the other end is swung back and forth under the action of the two hydraulic cylinders and the 6 piston rods, which are respectively communicated with the two conveying cylinders 5 to realize the process of material suction and discharging.
| Producr name | Putzmeister C valve |
| Model No. | DN125 |
| Material | 20# Steel |
| Technology | Casting steel |
| Pipe surface | Sandblasting |
| Application | Concrete pump pipe |
2.We can also provide other accessories related to C valve, such as C valve cover plate, C valve plug connecting rod, C valve stirring short shaft, C valve stirring blade, C valve swing cylinder seal and other accessories.
3.Putzmeister another wear parts
4.Other wear parts in stock are available for your choice
